Graphics Context

Text and Graphics output routines operate within a graphics context (GC); a structure containing current settings (foreground color, font, etc) for drawing operations. This not only reduces the number of arguments that these routines require, but also (since the GC is held in the server) reduces traffic. .

typedef struct {
                          /*DEFAULTS*/              /*MASKS*/
int function;             GXcopy                    GCFunction
unsigned long plane_mask; ~0                        GCPlaneMask
unsigned long foreground; 0                         GCForeground
unsigned long background; 1                         GCBackground
int line_width;           0                         GCLineWidth
int line_style;           LineSolid                 GCLineStyle
int cap_style;            CapButt                   GCCapStyle
int join_style;           JoinMiter                 GCJoinStyle
int fill_style;           FillSolid                 GCFillStyle
int fill_rule;            EvenOddRule               GCFillRule
int arc_mode;             ArcPieSlice               GCArcMode
Pixmap tile;              a pixmap in the fg color  GCTile
Pixmap stipple;           a pixmap  of 1's          GCStipple
int ts_x_origin;          0                         GCTileStipXOrigin
int ts_y_origin;          0                         GCTileStipYOrigin
Font font;                                          GCFont
int subwindow_mode;       ClipByChildren            GCSubwindowMode
Bool graphics_exposures;  True                      GCGraphicsExposures
int clip_x_origin;        0                         GCClipXOrigin
int clip_y_origin;        0                         GCClipYOrigin
Pixmap clip_mask;         None                      GCClipMask
int dash_offset;          0                         GCDashOffset
char dashes;              4                         GCDashList
} XGCValues;

function:-

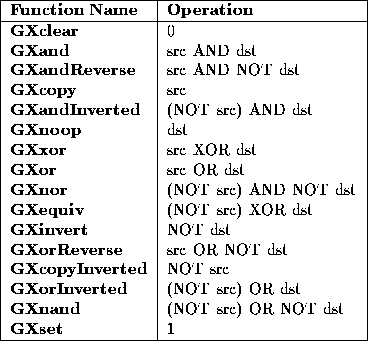

When something is drawn on the screen the machine takes the pixel value being drawn and combines it with the pixel which is already on the screen using a display function. The display function produces an output pixel value which becomes the new pixel for that particular point on the screen. If the old pixel value on the screen is "dst" and the pixel being drawn is "src" the following table lists the effects of the various display functions available.

line_style:-

LineSolid, LineDoubleDash, LineOnOffDash

cap_style:-

CapNotLast, CapButt, CapRound, CapProjecting

join_style:-

JoinMiter, JoinRound, JoinBevel

fill_style:-

FillSolid,FillTiled, FillOpaqueStippled

fill_rule:-

EvenOddRule, WindingRule (rules determining how to fill a complex polygon.

arc_mode:-

ArcPieSlice, ArcChord (rules determining how to fill an arc).

stipple:-

This is a bitmap for use in shading operations.

ts_x_origin, ts_y_origin:-

These are the offsets for tile/stipple operations.

subwindow_mode:-

ClipByChildren, IncludeInferiors

graphics_exposures:-

A Boolean; should expose events be generated if an attempt is made to draw to a hidden area?

To create a GC use

GC XCreateGC(display,d,valuemask,values)
   XGCValues *values

To change or free GC's, use

XCopyGC(display,src,valuemask,dest)
   GC src,dest

XChangeGC(display,gc,valuemask,values)

XFreeGC(display,gc)

XSetState (display,gc,foreground,background,function,planemask)
  This is a packaging of the following 4 routines;
XSetForeground(display,gc,foreground)
XSetBackground(display,gc,background)
XSetFunction(display,gc,function)
XSetPlaneMask(display,gc,planemask)

XSetLineAttributes(display,gc,line_width,linestyle,cap_style,join_style)
XSetDashes        (display,gc,dash_offset,dash_list,n)
XSetFillStyle     (display,gc,fill_style)
XSetFillRule      (display,gc,fill_rule)
XQueryBestSize    (display,class,d,width,height,rwidth,rheight)
XQueryBestTile    (display,gc,d,width,height,rwidth,rheight)
XQueryBestStipple (display,gc,d,width,height,rwidth,rheight)
XSetTile          (display,gc,tile)
XSetStipple       (display,gc,stipple)
XSetFont          (display,gc,font)
XSetClipOrigin    (display,gc,clip_x_origin,clip_y_origin)
XSetClipMask      (display,gc,pixmap
XSetClipRectangles(display,gc,clip_x_origin,clip_y_origin,rectangles,n,ordering)
XSetArcMode       (display,gc,arc_mode)
XSetSubwindowMode (display,gc,subwindowmode);
XSetGraphicsExposures(display,gc,graphics_exposures);
XSetRegion(display, gc, r);

Xlib caches the contents of the GC. The values in the cache can be requested using

Status XGetGCValues(display, gc, valuemask, values_return)
XGCValues *values_return;

• The values in the cache may not quite be the currently installed values.
• Unless the default values for CFont, GCTile, and GCStipple have been overridden, their values cannot be returned.
• The clip mask and dash list values cannot be returned.
